Best velocity practice querying page (class) property

Wardenburg · July 9, 2024, 10:35am

Xwiki version: 16.3.1

Good afternoon everyone!

I think I have a pretty straightforward ‘challenge’ that I’ve spend too long trying to solve, I’m trying to retrieve a (class) property of another page.

I have the full adress of this other page: in the example case it’s : "Main.Werkwijze.Formulieren.Rapport van oplevering BMI"

When viewing the object of the page the class is listed as :

Main.Werkwijze.Formulieren.Code.FormulierenClass

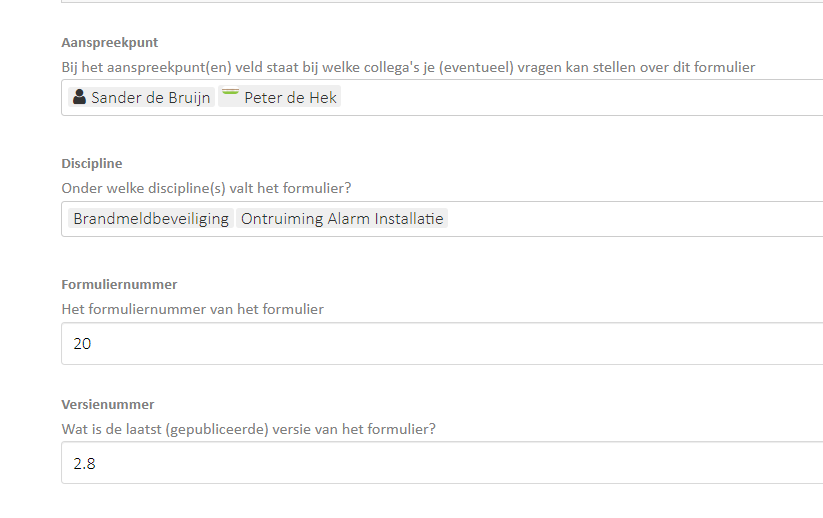

when looking at the properties of the class object I can see the values I want to retrieve

So I’ve attempted the following so far (none return any value):

#set ($xdoc=$xwiki.getDocument($Formulier))
#set ($xobject = $xdoc.getObject('Main.Werkwijze.Formulieren.Code.FormulierenClass'))
#set ($xclass = $xobject.xWikiClass)
#foreach ($property in $xclass.properties)
  $property.Name
  $property.value
#end

#set ($xdoc=$xwiki.getDocument($Formulier))
$xdoc.display('Versienummer')
$xdoc.getValue('Versienummer')

I’ve also attempted variations of the class reference #set ($xobject = $xdoc.getObject('Main.Werkwijze.Formulieren.Code.FormulierenClass')) as it seems the $xobject variable remains empty.

Now I know from the documentation that there are $service queries that can be run on all the objects of a class aswell, and Im fairly confident that I can get my solution through that route… but I find myself wondering what the best practice is here… and perhaps a hint as to where I’m going wrong.

Thank you in advance for any and all feedback!

Greetings from the NL!

acotiuga · July 9, 2024, 10:53am

Are you sure $xdoc and $Formulier are defined and not empty?

Wardenburg · July 9, 2024, 11:32am

Hey @acotiuga , what I did to check was:

#set($Formulier=$doc.getValue('Formulier'))
#set ($xdoc=$xwiki.getDocument($Formulier))
$Formulier
$xdoc

this output:

[Main.Werkwijze.Formulieren.Rapport van oplevering BMI]
"Main.Werkwijze.Formulieren.Rapport van oplevering BMI"

I think my issue is in the second part:

++++
#set ($xobject = $xdoc.getObject('Main.Werkwijze.Formulieren.Code.FormulierenClass'))
#set ($xclass = $xobject.xWikiClass)
$xobject
$xclass

this output:

++++
$xobject
$xclass

acotiuga · July 9, 2024, 11:42am

And if you check the page in object mode, the object is there, right?

Wardenburg · July 9, 2024, 11:52am

Indeed!

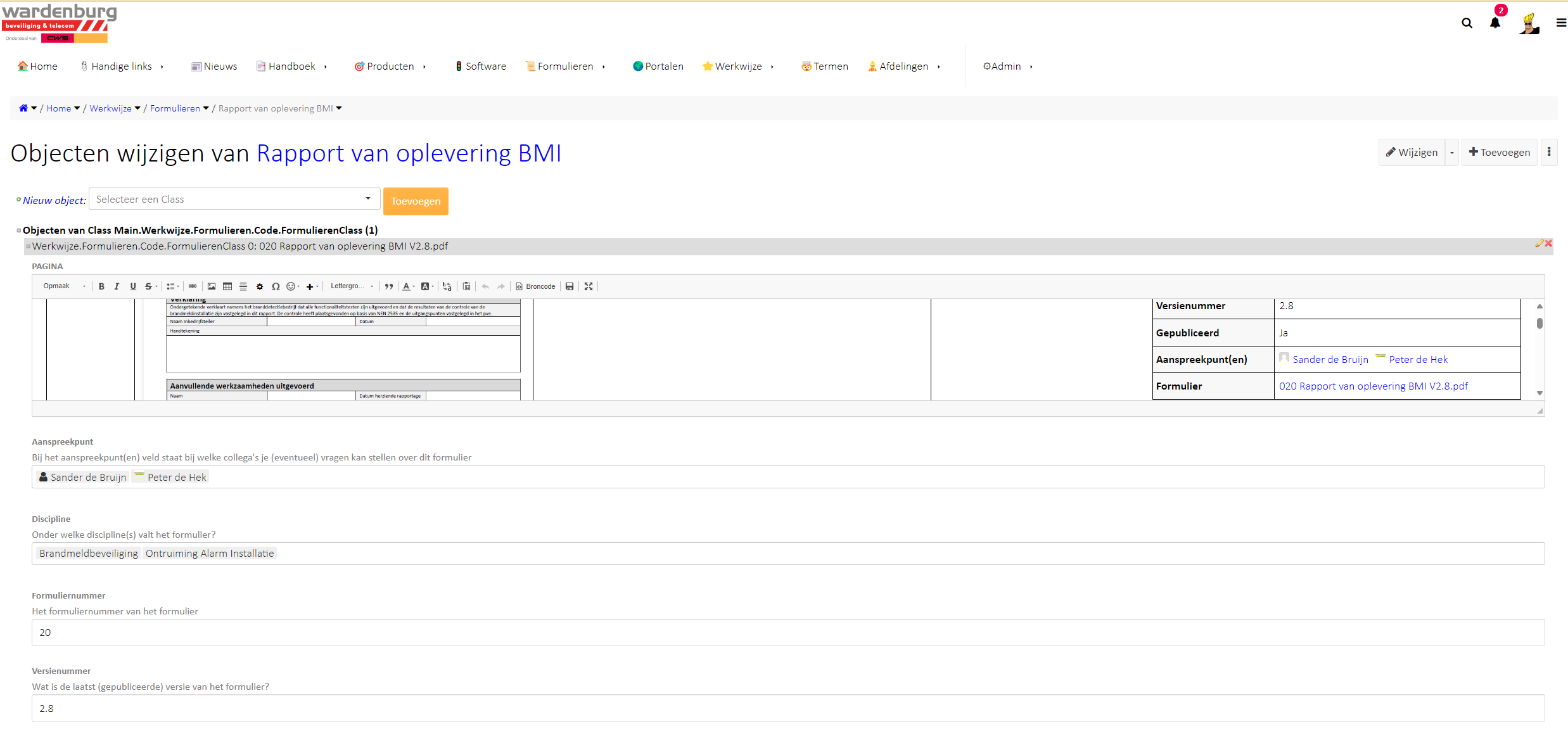

The OP screenshot of the object view was / is from the [Main.Werkwijze.Formulieren.Rapport van oplevering BMI]
“Main.Werkwijze.Formulieren.Rapport van oplevering BMI”

page

Here I can see the Main.Werkwijze.Formulieren.Code.FormulierenClass reference also, hence my confusion.

To add to my mystery I’m sure the below code ran fine before the update to 16.3

#set($Formulier=$doc.getValue('Formulier'))
#set ($xdoc=$xwiki.getDocument($Formulier))
$xdoc.getValue('Formuliernummer')

Hence why i started this post, I figured perhaps the using of getDocument / getValue was deprecated and we had to use service queries now.

Wardenburg · July 9, 2024, 12:28pm

Short update.

Another page with the exact same code is working normally

#set($Formulierdoc=$xwiki.getDocument($Formulier))
|=Formuliernummer|$Formulierdoc.getValue('Formuliernummer')
|=Versienummer (Huidig)|$Formulierdoc.display('Versienummer')

Outputs:

Formuliernummer	78
Versienummer (Huidig)	0.5

The strange thing is that the input is the same, and the ‘other page’ is of the same class / setup (including object view) also… I’m stumped!

$Formulier
$Formulierdoc

outputs:
[Main.Werkwijze.Formulieren.Declaratieformulier]
Main.Werkwijze.Formulieren.Declaratieformulier

acotiuga · July 9, 2024, 12:50pm

Great, then you have your answer: the code works as expected. You have to compare now the 2 pages to find the breakage.

Jan-Paul-Kleijn · July 10, 2024, 4:26pm

Hi, I am your debugger for today…

#set ($xdoc=$xwiki.getDocument($Formulier))
#set ($xobject = $xdoc.getObject('Main.Werkwijze.Formulieren.Code.FormulierenClass'))
#set ($xclass = $xobject.xWikiClass)
#foreach ($property in $xclass.properties)
  $xobject.getProperty($property.name).value
#end

Voila

Wardenburg · July 12, 2024, 10:01am

Hey Jan-Paul!

Appreciate the assist, unfortunately I think its not the code but something in the pages…

whichever way I look at it though they appear the same… I suspect it is a rights issue of sorts …

i.e. if I adjust your code to be:

 #set ($xdoc=$xwiki.getDocument($Formulier))
xdoc: $xdoc
#set ($xobject = $xdoc.getObject('Main.Werkwijze.Formulieren.Code.FormulierenClass'))
xobject : $xobject
#set ($xclass = $xobject.xWikiClass)
xclass: $xclass
#foreach ($property in $xclass.properties)
  $xobject.getProperty($property.name).value
#end

it outputs:

xdoc: "Main.Werkwijze.Formulieren.Onderhoudsplan OAI"
xobject : $xobject
xclass: $xclass

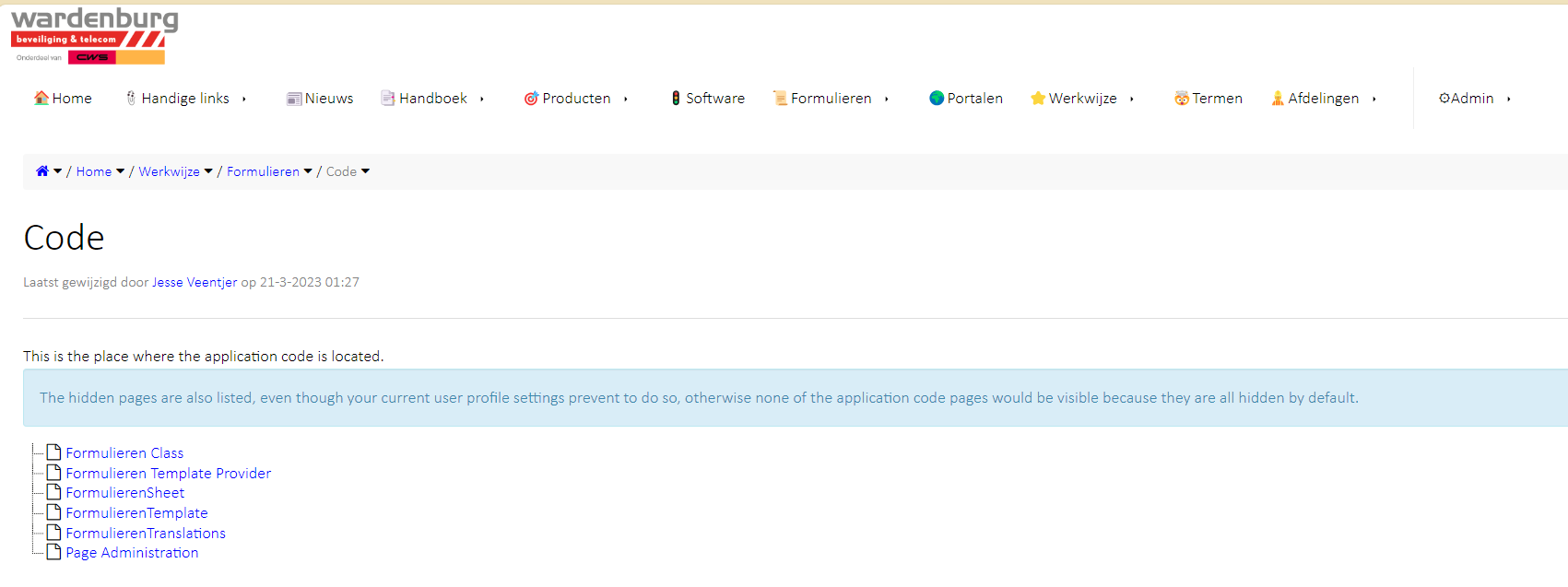

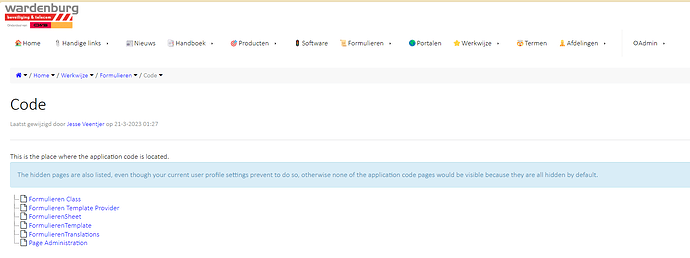

So it appears to me the formulierenclass is not being loaded… however the url for the formulierenclass is /Main/Werkwijze/Formulieren/Code/FormulierenClass and when I test with a link to [[test>>doc:Main.Werkwijze.Formulieren.Code.FormulierenClass]] it sends me to the Classpage just fine

I checked rights, objects on the pages etc. but cannot find the issue… but Not giving up just yet!

vmassol · July 15, 2024, 11:17am

This means that there’s no xobject Main.Werkwijze.Formulieren.Code.FormulierenClass in the Main.Werkwijze.Formulieren.Onderhoudsplan OAI page (i.e. getObject() returns null).

Wardenburg · July 16, 2024, 12:43pm

Hey @vmassol , thanks for the response during your busy day!

I understand that it’s not retrieving the object, I’m just unsure why it isnt now (and why it was before / is working on some pages!)

Also a sidenote it’s supposed to get an attribute of a page from another class, not of the current page!

Basically the setup is that there is an class that describes forms and a class that logs changes to the forms ; When making a ‘logging’ page the user selects a form page, and the script is supposed to retrieve data of that form page.

The script I was using was:

Formulier : $Formulier
#set($Formulierdoc=$xwiki.getDocument($Formulier))
Formulierdoc : $Formulierdoc
$Formulierdoc.getValue('Formuliernummer')

On the pages where this script runs sucesfully I get:

Formulier : [Main.Werkwijze.Formulieren.Declaratieformulier]
Formulierdoc : Main.Werkwijze.Formulieren.Declaratieformulier
78

However on most of the newer pages it outputs:

Formulier : [Main.Werkwijze.Formulieren.Rapport van oplevering BMI]
Formulierdoc : "Main.Werkwijze.Formulieren.Rapport van oplevering BMI"
$Formulierdoc.getValue('Formuliernummer')

Note that the page absolutely exists and the [Main.Werkwijze.Formulieren.Rapport van oplevering BMI] link can be followed to the page normally

So I suppose the question comes down to why the script is outputting “” for the one document and the name without the " in the other
