Have Xwiki any plugin or macro to untegrate Swagger (openAPI)?

Help / Discuss
7

Thanks for the help. Sorry for forgetting to explain. This is my mistake.

OpenApi is a specification of the WEB API REST format.
It is a json or yaml file. (for example, like here https://petstore.swagger.io/v2/swagger.json)

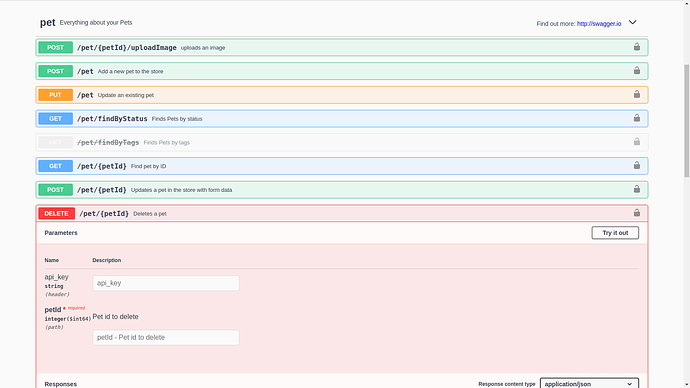

Swagger-ui allows you to visually display this file in the browser (see figure)

fig
fig1600×900 63.2 KB

swagger-ui/dist at master · swagger-api/swagger-ui · GitHub allows you to include 2 JS libraries, 1 CSS file, and add a little html to display an openapi file on any page of the site as in the specified picture.
Here is an example index.html

<!-- HTML for static distribution bundle build -->
<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="UTF-8">
    <title>Swagger UI</title>
    <link rel="stylesheet" type="text/css" href="./swagger-ui.css" />

  </head>

  <body>
    <div id="swagger-ui"></div>

    <script src="./swagger-ui-bundle.js" charset="UTF-8"> </script>
    <script src="./swagger-ui-standalone-preset.js" charset="UTF-8"> </script>
    <script>
    window.onload = function() {
      // Begin Swagger UI call region
      const ui = SwaggerUIBundle({
        url: "https://petstore.swagger.io/v2/swagger.json",
        dom_id: '#swagger-ui',
        deepLinking: true,
        presets: [
          SwaggerUIBundle.presets.apis,
          SwaggerUIStandalonePreset
        ],
        plugins: [
          SwaggerUIBundle.plugins.DownloadUrl
        ],
        layout: "StandaloneLayout"
      });
      // End Swagger UI call region

      window.ui = ui;
    };
  </script>
  </body>
</html>

I tried to insert the code from the js libraries into the XWIKI directly into the article , and in the html macro, I tried to insert it into the skin extension, I even installed swagger-ui via WebJars, but nothing is displayed on the article page.
