Hello,
I had an issue retrieving the list of available macros.
I uninstalled the CKEditor extension and re-installed back again and I could see again the window that shows available macros.
I still have an issue: I don’t see any more macros in the list. Can you please help?
My xwiki version is 8.4.5
My CKEditor Integration version is 1.14
Many thanks
This seems like a recurring problem. I’ve seen several users report this issue.
@mflorea do you know/remember what is the cause for this?
Hello,
I also wrote at the end of the indicated thread.
I was able to reinstall CKEditor and the macro button works again in the sense that it opens the window and does not throw an error, like before.

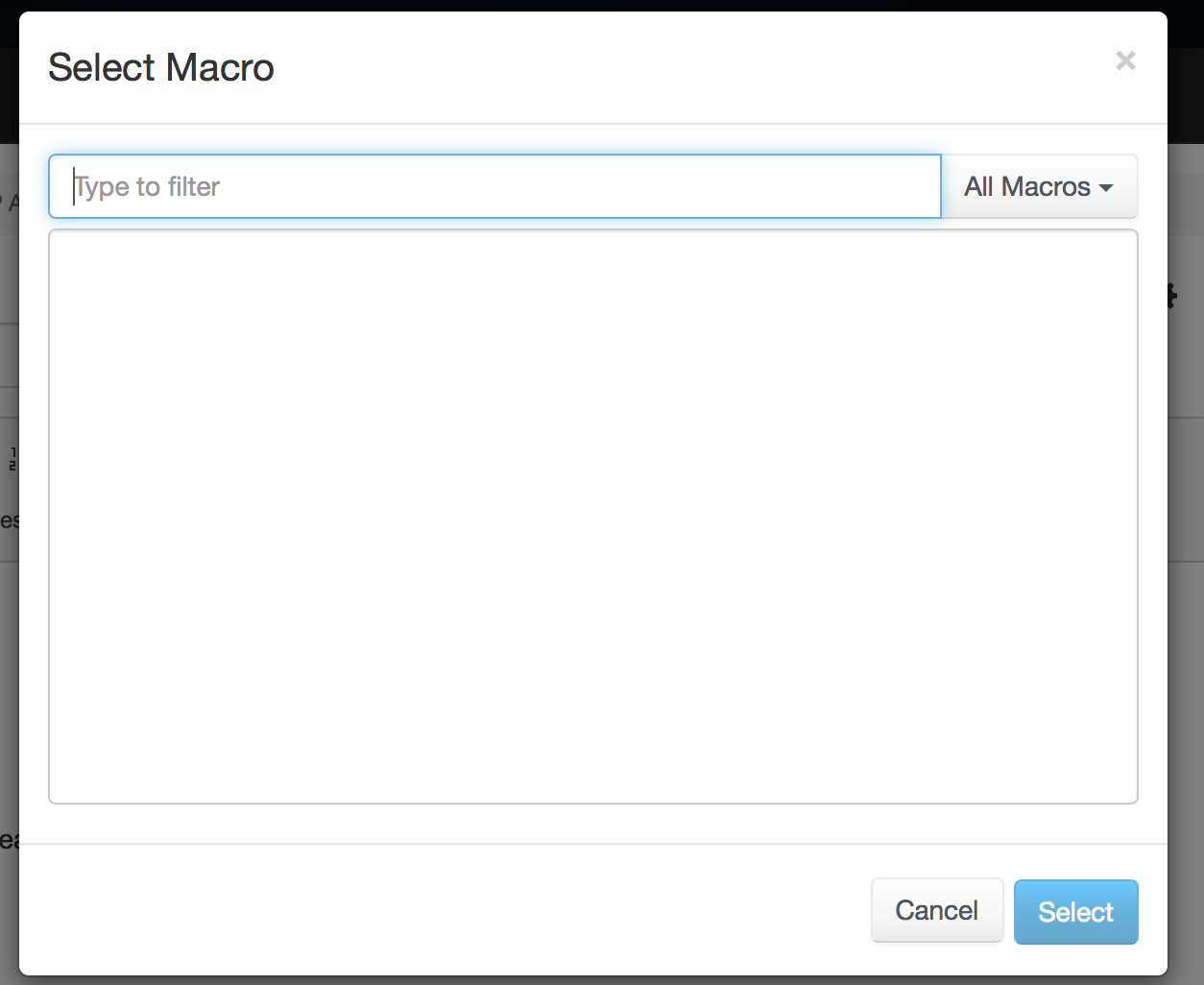

But the window is empty: no macros are visible.
Can you please help?
Note: I tried to upgrade the xwiki version, but I had errors while applying the new flavor due to missing links on the CK Editor…
Here is what happens when I try to upgrade…
Exception details:
Error number 3202 in 3: Exception while reading document [xwiki:CKEditor.AdminSection]
com.xpn.xwiki.XWikiException: Error number 3202 in 3: Exception while reading document [xwiki:CKEditor.AdminSection]
at com.xpn.xwiki.store.XWikiHibernateStore.loadXWikiDoc(XWikiHibernateStore.java:1007)
at com.xpn.xwiki.store.XWikiCacheStore.loadXWikiDoc(XWikiCacheStore.java:280)
at com.xpn.xwiki.XWiki.getDocument(XWiki.java:1854)
at com.xpn.xwiki.XWiki.getDocument(XWiki.java:1914)
at com.xpn.xwiki.XWiki.prepareDocuments(XWiki.java:4975)
at com.xpn.xwiki.web.XWikiAction.execute(XWikiAction.java:363)
at com.xpn.xwiki.web.XWikiAction.execute(XWikiAction.java:209)
at org.apache.struts.action.RequestProcessor.processActionPerform(RequestProcessor.java:425)
at org.apache.struts.action.RequestProcessor.process(RequestProcessor.java:228)
at org.apache.struts.action.ActionServlet.process(ActionServlet.java:1913)
at org.apache.struts.action.ActionServlet.doGet(ActionServlet.java:449)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:635)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:742)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:231)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at com.xpn.xwiki.web.ActionFilter.doFilter(ActionFilter.java:112)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.xwiki.wysiwyg.filter.ConversionFilter.doFilter(ConversionFilter.java:127)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.apache.tomcat.websocket.server.WsFilter.doFilter(WsFilter.java:52)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.xwiki.container.servlet.filters.internal.SetHTTPHeaderFilter.doFilter(SetHTTPHeaderFilter.java:63)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.xwiki.container.servlet.filters.internal.SavedRequestRestorerFilter.doFilter(SavedRequestRestorerFilter.java:208)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.xwiki.container.servlet.filters.internal.SetCharacterEncodingFilter.doFilter(SetCharacterEncodingFilter.java:111)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.xwiki.resource.servlet.RoutingFilter.doFilter(RoutingFilter.java:134)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:198)
at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:96)
at org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:496)
at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:140)
at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:81)
at org.apache.catalina.valves.AbstractAccessLogValve.invoke(AbstractAccessLogValve.java:650)
at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:87)
at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:342)
at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:803)
at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:66)
at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:790)
at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1459)
at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:49)
at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
at java.lang.Thread.run(Thread.java:748)
Caused by: com.xpn.xwiki.XWikiException: Error number 3235 in 3: Exception while searching attachments for documents xwiki:CKEditor.AdminSection
at com.xpn.xwiki.store.XWikiHibernateStore.loadAttachmentList(XWikiHibernateStore.java:1672)
at com.xpn.xwiki.store.XWikiHibernateStore.loadXWikiDoc(XWikiHibernateStore.java:904)
… 52 more
Caused by: org.hibernate.PropertyAccessException: Null value was assigned to a property of primitive type setter of com.xpn.xwiki.doc.XWikiAttachment.longSize
at org.hibernate.property.BasicPropertyAccessor$BasicSetter.set(BasicPropertyAccessor.java:109)
at org.hibernate.tuple.entity.AbstractEntityTuplizer.setPropertyValues(AbstractEntityTuplizer.java:583)
at org.hibernate.tuple.entity.PojoEntityTuplizer.setPropertyValues(PojoEntityTuplizer.java:229)
at org.hibernate.persister.entity.AbstractEntityPersister.setPropertyValues(AbstractEntityPersister.java:3847)
at org.hibernate.engine.TwoPhaseLoad.initializeEntity(TwoPhaseLoad.java:152)
at org.hibernate.loader.Loader.initializeEntitiesAndCollections(Loader.java:982)
at org.hibernate.loader.Loader.doQuery(Loader.java:857)
at org.hibernate.loader.Loader.doQueryAndInitializeNonLazyCollections(Loader.java:274)
at org.hibernate.loader.Loader.doList(Loader.java:2542)
at org.hibernate.loader.Loader.listIgnoreQueryCache(Loader.java:2276)
at org.hibernate.loader.Loader.list(Loader.java:2271)
at org.hibernate.loader.hql.QueryLoader.list(QueryLoader.java:459)
at org.hibernate.hql.ast.QueryTranslatorImpl.list(QueryTranslatorImpl.java:365)
at org.hibernate.engine.query.HQLQueryPlan.performList(HQLQueryPlan.java:196)
at org.hibernate.impl.SessionImpl.list(SessionImpl.java:1268)
at org.hibernate.impl.QueryImpl.list(QueryImpl.java:102)
at com.xpn.xwiki.store.XWikiHibernateStore.loadAttachmentList(XWikiHibernateStore.java:1664)
… 53 more
Caused by: java.lang.IllegalArgumentException
at sun.reflect.GeneratedMethodAccessor239.invoke(Unknown Source)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at org.hibernate.property.BasicPropertyAccessor$BasicSetter.set(BasicPropertyAccessor.java:66)
… 69 more
Can you post a screen shot of the CKEditor with the macro list window opened? Does this happen in the main wiki or in a subwiki? What does this return:
<yourServer>/xwiki/bin/get/CKEditor/MacroService?outputSyntax=plain&data=list&syntaxId=xwiki%2F2.1
You did try to clear the browser cache right?
Here is the actual condition.
It happens on the Main Wiki.
My browser cache is clean.

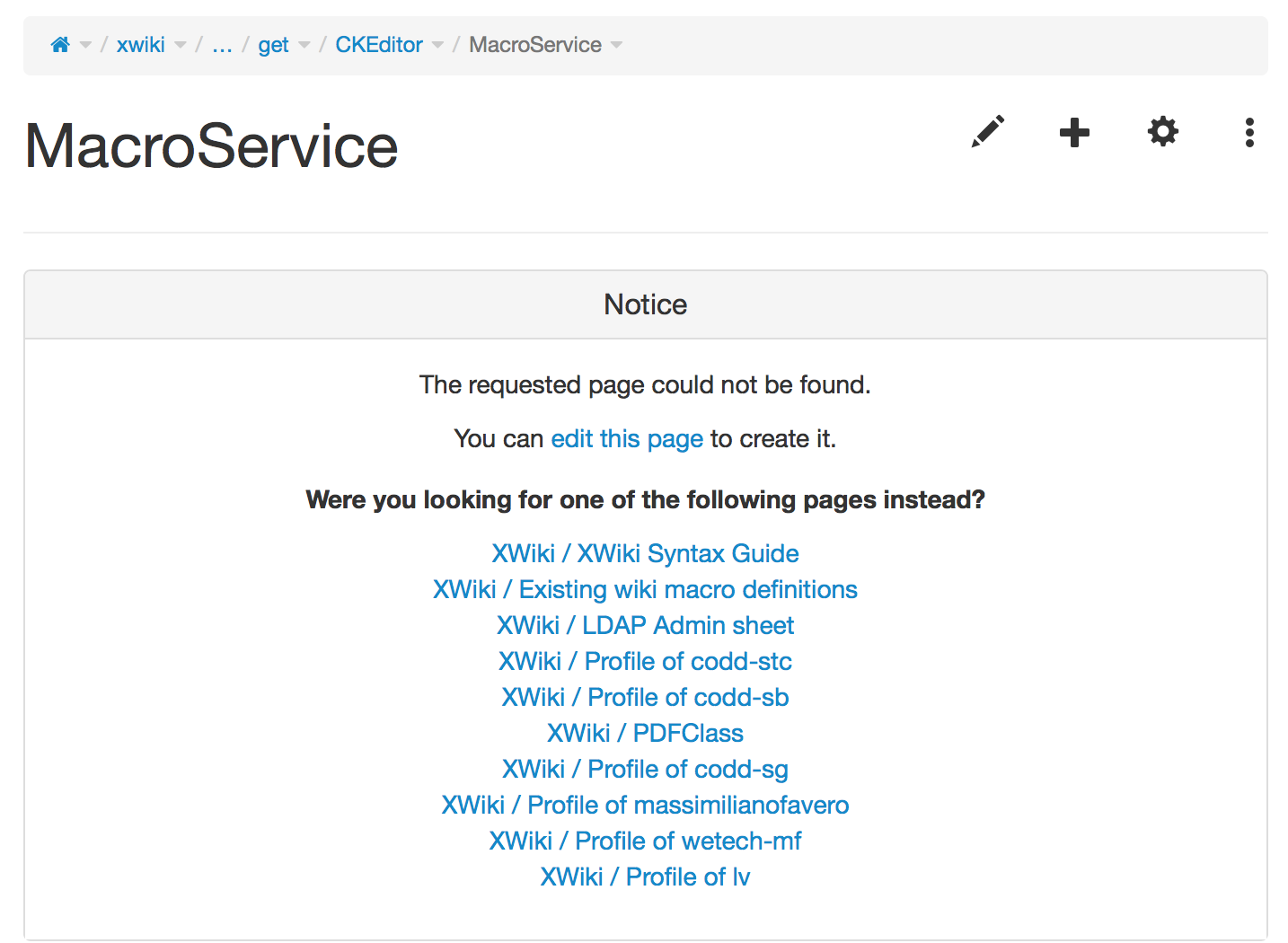

Result of opening the url you indicated…

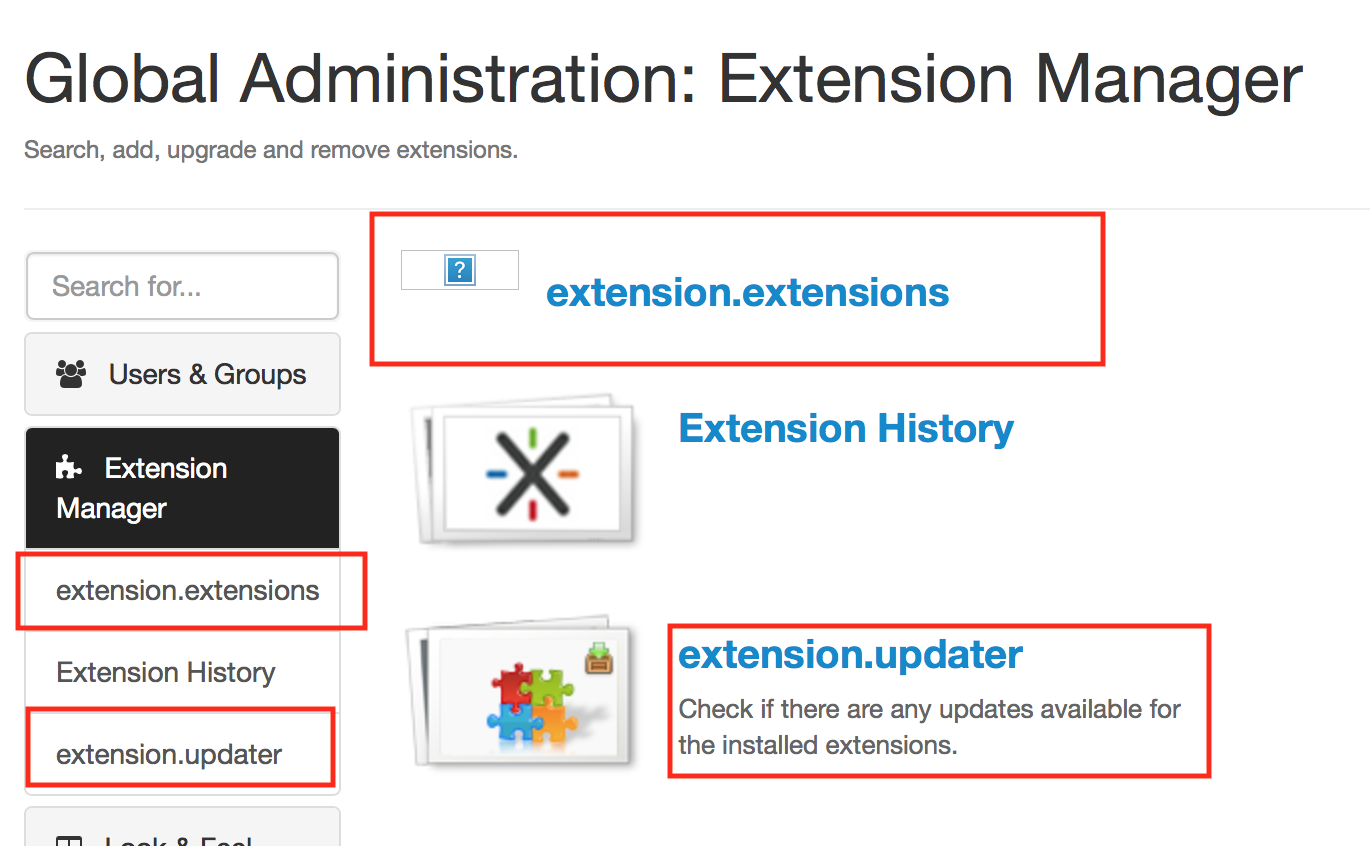

checking the extensions manager, I also found the following strange things…
So that’s your problem: CKEditor is missing some pages which means it wasn’t properly installed. As for the exception you get
Caused by: org.hibernate.PropertyAccessException: Null value was assigned to a property of primitive type setter of com.xpn.xwiki.doc.XWikiAttachment.longSize
I haven’t seen this before. @tmortagne any idea?
Hello,
the exception is the detail of the update process, which I had to give up.
How do I install CKEditor properly?

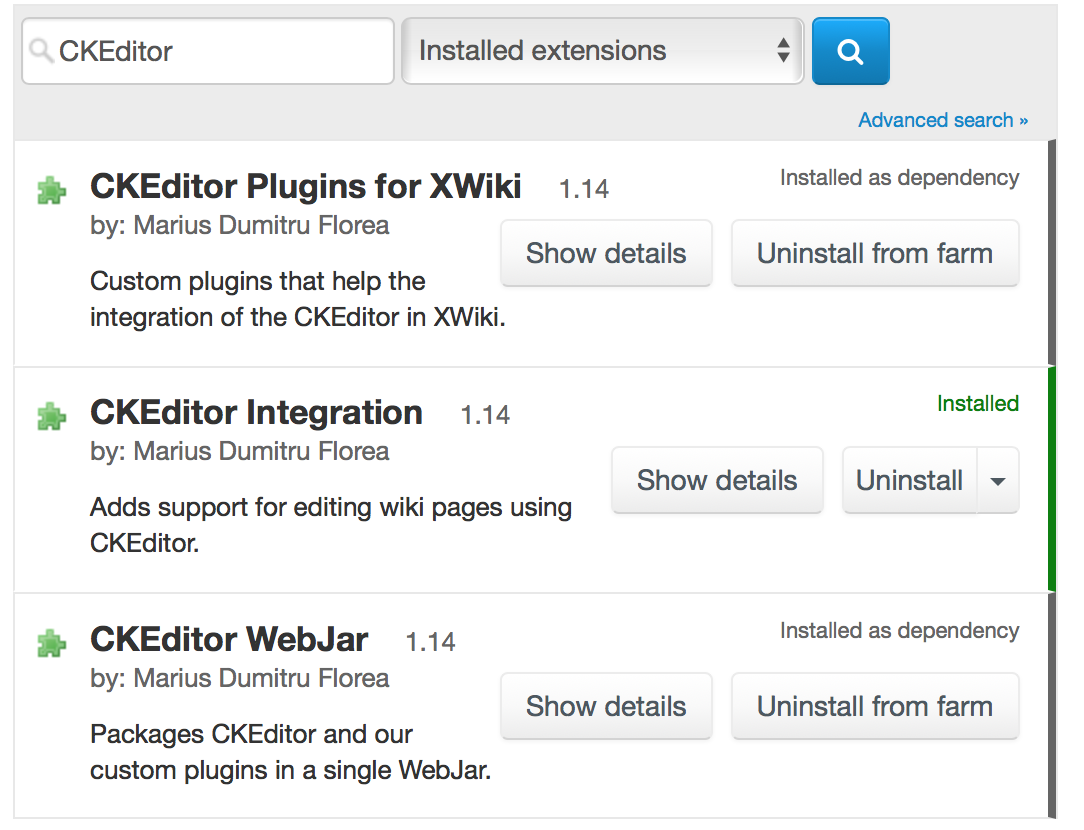

Here is my installation.
Am I missing something?
Hello,
I re-installed it again and it works!
Thanks
I would like to add a contribution.

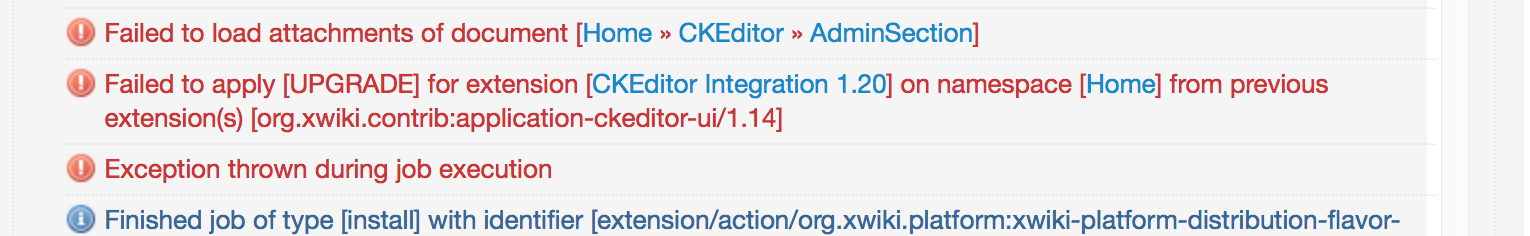

When I tried to upgrade from ver. 8 to ver. 9 or 10 I always had an issue when trying to install the latest flavor, i.e.: “Failed to apply [UPGRADE] for extension [CKEditor Integration 1.20] on namespace [Home] from previous extension(s)…”
I solved this by running the extensions updater on xwiki version 8. This action updated the CK Editor to the latest version.
Finally I was able to upgrade from ver. 8 to ver. 10 without CKEditor issues.
